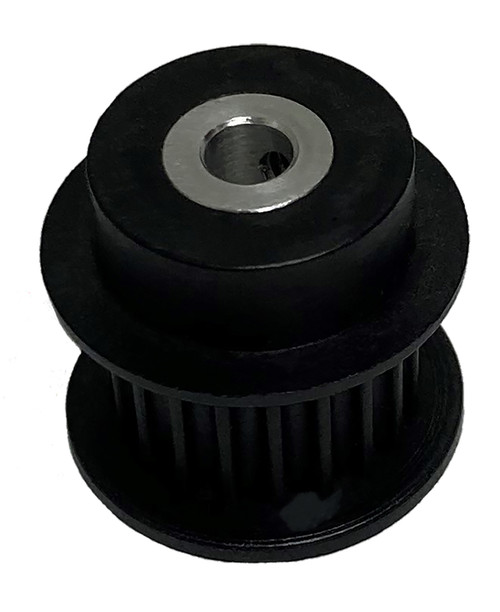

25-3P09MDFA5, Timing Pulley

25-3P09MDFA5

25-3P09MDFA5

25-3P09MDFA5, Timing Pulley

B&B Manufacturing carries 25-3P09MDFA5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 25-3P09MDFA5
Teeth 25
Tooth Style 3P
For Belt Width (mm) 9.00
Type DFA
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 5 mm Bore
Bore (mm) 5.00
Pitch Diameter (in) 0.940
Outside Diameter (in) 0.910
Flange Diameter (in) 1.190
Face Width (in) 0.563
Overall Length (in) 0.813
Hub Diameter (in) 0.750
Unit System Metric
P.D. (mm) 24.00
O.D. (mm) 23.10
Flange Diameter (mm) 30.23
Face Width (mm) 14.29
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 25-3P09MDFA5, 25-3P09MDFA5
Set Screw Quantity 1
Insert Material Aluminum
