24T20P20-6P3, Gear

24T20P20-6P3

24T20P20-6P3

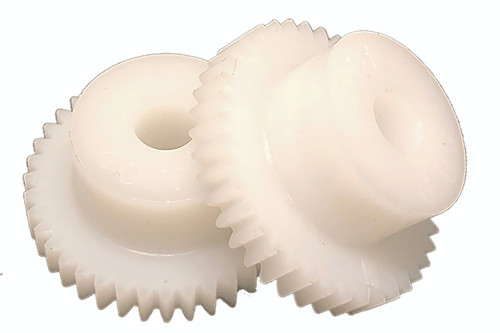

24T20P20-6P3, Gear, Plastic

B&B Manufacturing carries 24T20P20-6P3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	24T20P20-6P3
Teeth	24
Tooth Style	20
Material	Acetal
Bore (in)	0.250
Bore Description	1/4 Inch Bore
Pitch Diameter (in)	1.200
Outside Diameter (in)	1.300
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	0.734
Unit System	Inch
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	24T20P20-6P3, 24T20P20-6P3
Pressure Angle	20.0
Diametral Pitch	20

Related Products

Comparable to: 24T20P20-6P3, 24T20P20-6P3
