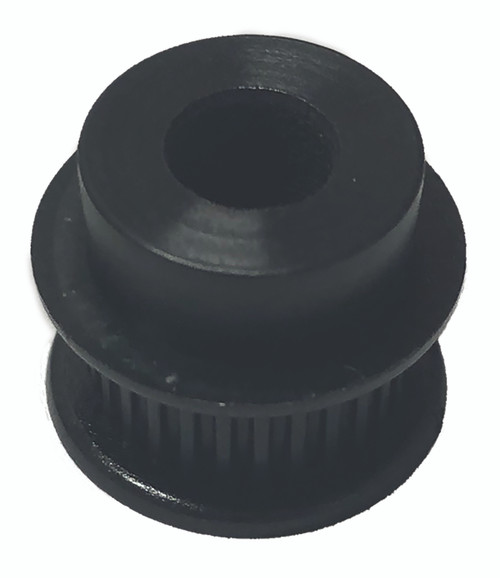

24MP025MDFP6, Timing Pulley

24MP025MDFP6

24MP025MDFP6

24MP025MDFP6, Timing Pulley

B&B Manufacturing carries 24MP025MDFP6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 24MP025MDFP6
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 6 mm Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.611
Outside Diameter (in) 0.591
Flange Diameter (in) 0.780
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Metric
P.D. (mm) 16.00
O.D. (mm) 15.00
Flange Diameter (mm) 19.81
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 24MP025MDFP6, 24MP025MDFP6
