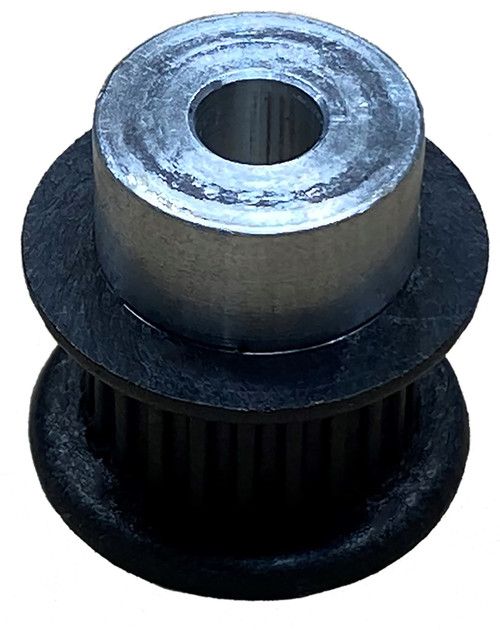

24MP025-DFM2, Timing Pulley

24MP025-DFM2

24MP025-DFM2

24MP025-DFM2, Timing Pulley, Plastic

B&B Manufacturing carries 24MP025-DFM2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 24MP025-DFM2
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFM
Material Polycarbonate
Flange Material Polycarbonate
Bore Type Minimum Plain Bore
Bore (in) 0.188
Bore Description 3/16 Inch Bore
Pitch Diameter (in) 0.611
Outside Diameter (in) 0.591
Flange Diameter (in) 0.780
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.00
Flange Diameter (mm) 19.81
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 24MP025-DFM2, 24MP025-DFM2
Set Screw Quantity 1
Insert Material Aluminum
