23V560SH, V-Belt Pulley

23V560SH, 3V5.6-2-SH, 20180618, 3V562, 2-3V5.6, 2/3V560SH

23V560SH

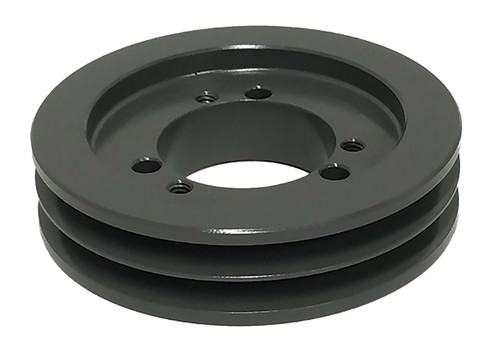

23V560SH, V-Belt Pulley, Cast Iron

Learn more about 23V560SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V560SH
Type D-2
Material Cast Iron
Bore Type QD
Bore Description Bored for SH Bushing
Pitch Diameter (in) 5.550
Outside Diameter (in) 5.600
Face Width (in) 1.094
Min. Bore (in) 0.5
Unit System Inch
Bushing SH
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 4.00
Part Number Cross Reference QD2/3V5.60, 23V560SH, 3V5.6-2-SH, 20180618, 2-3V5.60-SH SHEAVE, 3V562, 2-3V5.60, 23V560SH, 455136, 23V560SH
Grooves 2

Related Products

Comparable to: QD2/3V5.60, 23V560SH, 3V5.6-2-SH, 20180618, 2-3V5.60-SH SHEAVE, 3V562, 2-3V5.60, 23V560SH, 455136, 23V560SH
