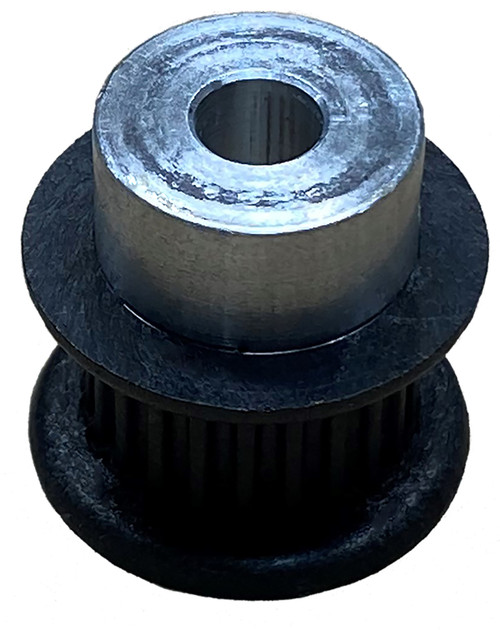

22MP025MDFM5, Timing Pulley

22MP025MDFM5

22MP025MDFM5

22MP025MDFM5, Timing Pulley

B&B Manufacturing carries 22MP025MDFM5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 22MP025MDFM5
Teeth 22
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFM
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 5 mm Bore
Bore (mm) 5.00
Pitch Diameter (in) 0.560
Outside Diameter (in) 0.540
Flange Diameter (in) 0.730
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Metric
P.D. (mm) 14.00
O.D. (mm) 13.70
Flange Diameter (mm) 18.54
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 22MP025MDFM5, 22MP025MDFM5
Set Screw Quantity 1
Insert Material Aluminum
