22-3M09-6FA3, Timing Pulley

22-3M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

22-3M09-6FA3

Click to Enlarge

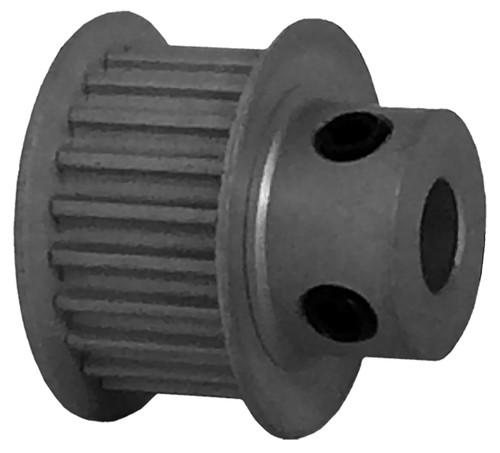

22-3M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-3M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-3M09-6FA3
Teeth 22
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.827
Outside Diameter (in) 0.797
Flange Diameter (in) 0.945
Face Width (in) 0.506
Overall Length (in) 0.812
Hub Diameter (in) 0.562
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.400
Unit System Inch
P.D. (mm) 21.00
O.D. (mm) 20.20
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A23-022DF0908, A6A23-022DF0908, P22-3M-09AL, 22M3-L09M-6F, PT022F08L09T, 22-3M-09 X 1/4, 22-3M09-6FA3, 22-3M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A23-022DF0908, A6A23-022DF0908, P22-3M-09AL, 22M3-L09M-6F, PT022F08L09T, 22-3M-09 X 1/4, 22-3M09-6FA3, 22-3M09-6FA3
