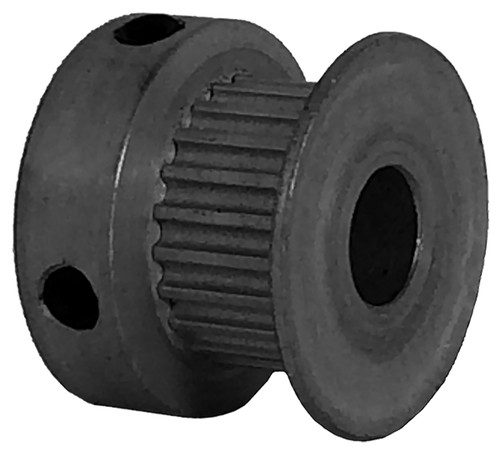

22-2P06M6CA6, Timing Pulley

22-2P06M6CA6

22-2P06M6CA6

22-2P06M6CA6 Line Drawing

Click to Enlarge

22-2P06M6CA6, Timing Pulley

B&B Manufacturing carries 22-2P06M6CA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 22-2P06M6CA6
Teeth 22
Tooth Style 2P
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6.000
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.551
Outside Diameter (in) 0.531
Flange Diameter (in) 0.740
Face Width (in) 0.326
Overall Length (in) 0.562
Hub Diameter (in) 0.740
Pulley Belt Width (in) 0.290
Pulley Belt Width (mm) 7.20
Unit System Metric
Belt Width (mm) 7.20
P.D. (mm) 14.00
O.D. (mm) 13.50
Flange Diameter (mm) 18.80
Face Width (mm) 9.90
Overall Length (mm) 14.30
Hub Diameter (mm) 18.80
MOQ 1
Part Number Cross Reference 6A51M022DF0606, 22-2P06M6CA6, 22-2P06M6CA6
Set Screw Quantity 2
