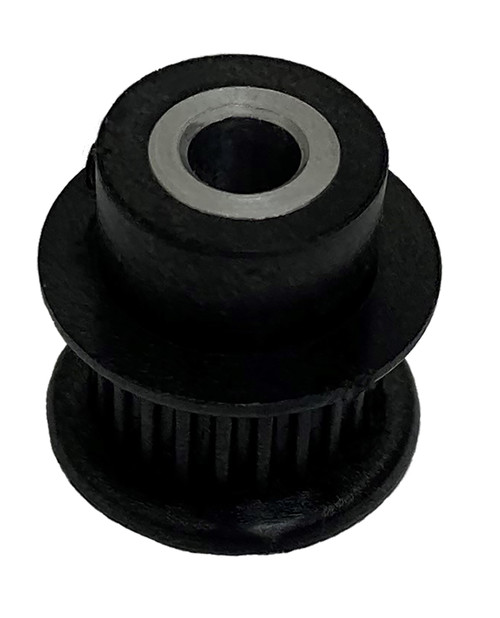

21MP025MDFA5, Timing Pulley

21MP025MDFA5

21MP025MDFA5

21MP025MDFA5, Timing Pulley

B&B Manufacturing carries 21MP025MDFA5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 21MP025MDFA5
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFA
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 5 mm Bore
Bore (mm) 5.00
Pitch Diameter (in) 0.536
Outside Diameter (in) 0.515
Flange Diameter (in) 0.700
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Metric
P.D. (mm) 14.00
O.D. (mm) 13.10
Flange Diameter (mm) 17.78
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 21MP025MDFA5, 21MP025MDFA5
Set Screw Quantity 1
Insert Material Aluminum
