21-3P09M6FA6, Timing Pulley

21-3P09M6FA6

21-3P09M6FA6

21-3P09M6FA6 Line Drawing

Click to Enlarge

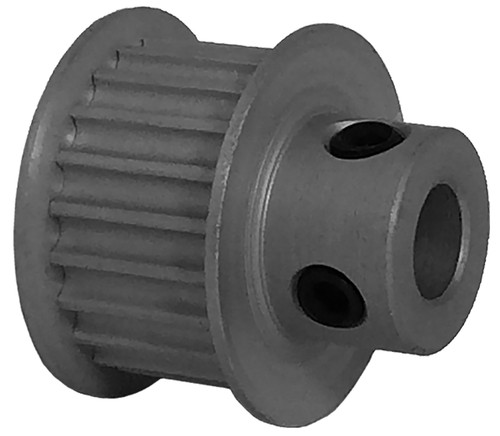

21-3P09M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-3P09M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-3P09M6FA6
Teeth 21
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.790
Outside Diameter (in) 0.760
Unit System Metric
P.D. (mm) 20.00
O.D. (mm) 19.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 21-3P09M6FA6, 21-3P09M6FA6
