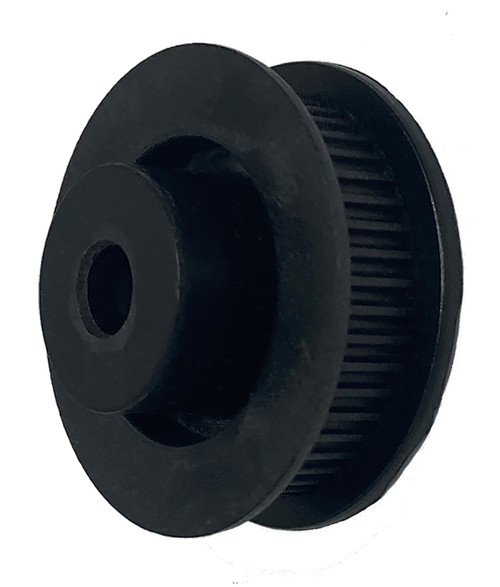

21-2P06MDFP6, Timing Pulley

21-2P06MDFP6

21-2P06MDFP6

21-2P06MDFP6, Timing Pulley

B&B Manufacturing carries 21-2P06MDFP6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 21-2P06MDFP6
Teeth 21
Tooth Style 2P
For Belt Width (mm) 6.00
Type DFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 6 mm Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.526
Outside Diameter (in) 0.506
Flange Diameter (in) 0.700
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.500
Unit System Metric
P.D. (mm) 13.00
O.D. (mm) 12.90
Flange Diameter (mm) 17.78
Overall Length (mm) 17.48
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference 21-2P06MDFP6, 21-2P06MDFP6
Set Screw Quantity 1
