20XL037-DFM3, Timing Pulley

20XL037-DFM3

20XL037-DFM3

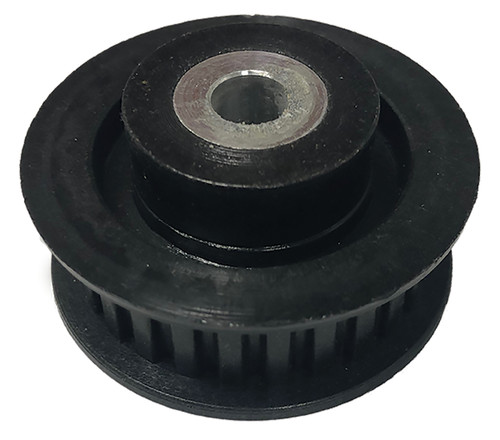

20XL037-DFM3, Timing Pulley, Plastic

B&B Manufacturing carries 20XL037-DFM3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 20XL037-DFM3
Teeth 20
Tooth Style XL
For Belt Width (in) 0.3750
Type DFM
Material Acetal
Flange Material Acetal
Bore Type Minimum Plain Bore
Bore (in) 0.250
Bore Description 1/4 Inch Bore
Pitch Diameter (in) 1.273
Outside Diameter (in) 1.253
Flange Diameter (in) 1.500
Face Width (in) 0.625
Overall Length (in) 0.813
Hub Diameter (in) 0.870
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.80
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference 20XL037-LDF x 1/4, 20XL037-DFM3, 20XL037-DFM3
Set Screw Quantity 1
Insert Material Aluminum
