20MP025-SFP2, Timing Pulley

20MP025-SFP2

20MP025-SFP2

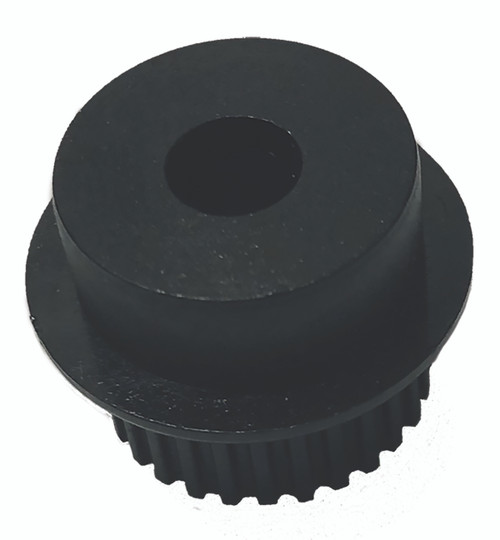

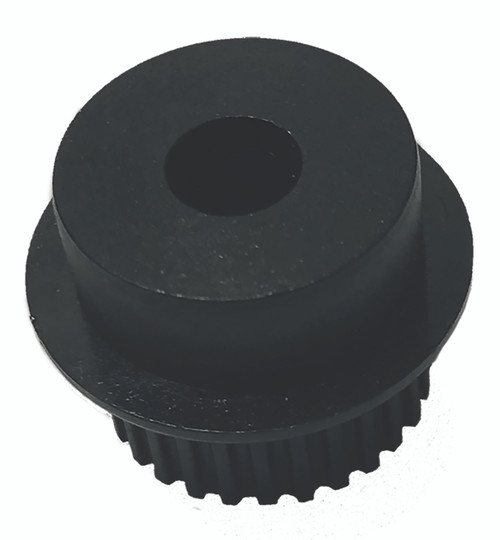

20MP025-SFP2, Timing Pulley, Plastic

B&B Manufacturing carries 20MP025-SFP2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 20MP025-SFP2
Teeth 20
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Type Minimum Plain Bore
Bore (in) 0.188
Bore Description 3/16 Inch Bore
Pitch Diameter (in) 0.509
Outside Diameter (in) 0.489
Flange Diameter (in) 0.680
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.40
Flange Diameter (mm) 17.27
MOQ 1
Weight (lb) 0.00
Part Number Cross Reference 20MXL025-LSF, 20MP025-SFP2, 20MP025-SFP2
