14XL037-DFP3, Timing Pulley

14XL037-DFP3

14XL037-DFP3

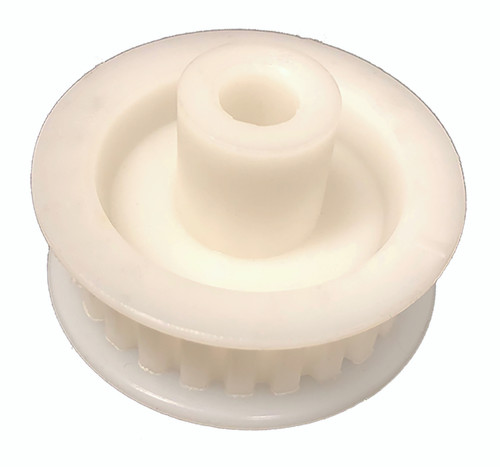

14XL037-DFP3, Timing Pulley, Plastic

B&B Manufacturing carries 14XL037-DFP3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 14XL037-DFP3
Teeth 14
Tooth Style XL
For Belt Width (in) 0.3750
Type DFP
Material Acetal
Flange Material Acetal
Bore Type Minimum Plain Bore
Bore (in) 0.250
Bore Description 1/4 Inch Bore
Pitch Diameter (in) 0.891
Outside Diameter (in) 0.871
Flange Diameter (in) 1.125
Face Width (in) 0.688
Overall Length (in) 0.813
Hub Diameter (in) 0.750
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.10
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 14XL037-DFP3, 14XL037-DFP3
