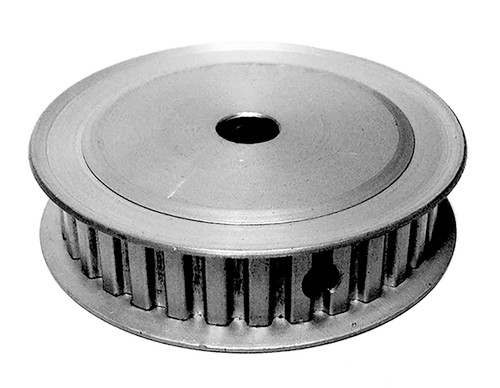

12XL037-3FS2, Timing Pulley

12XL037-3FS2 - Steel Imperial Pitch Pulleys

12XL037-3FS2

12XL037-3FS2 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

12XL037-3FS2, Timing Pulley, Steel, Black Oxide

B&B Manufacturing carries 12XL037-3FS2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 12XL037-3FS2
Teeth 12
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.188
Bore Description 3/16 Inch Minimum Plain Bore
Pitch Diameter (in) 0.764
Outside Diameter (in) 0.744
Flange Diameter (in) 1.000
Face Width (in) 0.563
Overall Length (in) 0.563
Unit System Inch
P.D. (mm) 19.00
O.D. (mm) 18.90
MOQ 1
Weight (lb) 0.06
Part Number Cross Reference 12XL037-3FS2, 12XL037-3FS2
Set Screw Quantity 2
