11XL037-DFP2, Timing Pulley

11XL037-DFP2

11XL037-DFP2

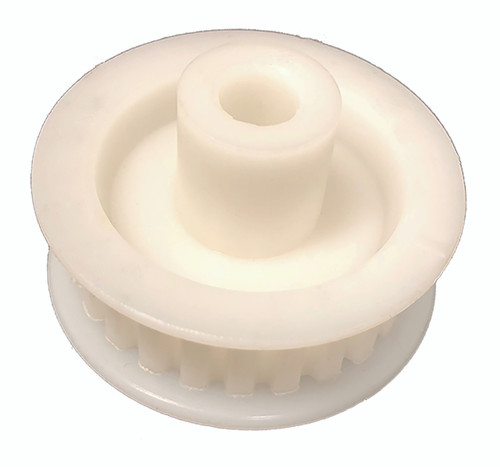

11XL037-DFP2, Timing Pulley, Plastic

B&B Manufacturing carries 11XL037-DFP2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 11XL037-DFP2
Teeth 11
Tooth Style XL
For Belt Width (in) 0.3750
Type DFP
Material Acetal
Flange Material Acetal
Bore Type Minimum Plain Bore
Bore (in) 0.188
Bore Description 3/16 Inch Bore
Pitch Diameter (in) 0.700
Outside Diameter (in) 0.680
Flange Diameter (in) 0.938
Face Width (in) 0.688
Overall Length (in) 0.813
Hub Diameter (in) 0.506
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.30
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 11XL037-DFP2, 11XL037-DFP2
