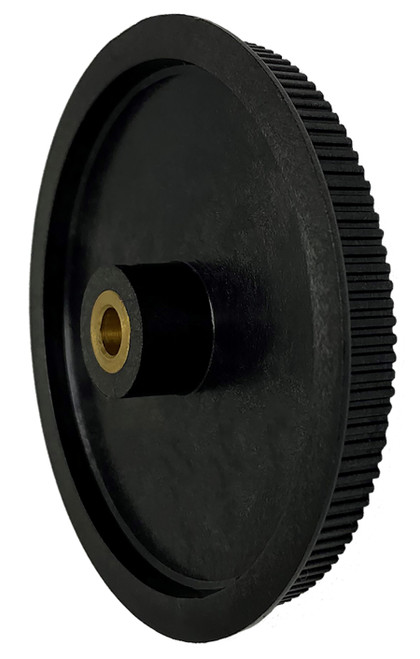

110MP025-SFB4, Timing Pulley

110MP025-SFB4

110MP025-SFB4

110MP025-SFB4, Timing Pulley

B&B Manufacturing carries 110MP025-SFB4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 110MP025-SFB4
Teeth 110
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFB
Material Polycarbonate
Flange Material Polycarbonate
Bore (in) 0.313
Bore Description 5/16 Inch Bore
Pitch Diameter (in) 2.801
Outside Diameter (in) 2.781
Flange Diameter (in) 2.970
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 71.00
O.D. (mm) 70.60
Flange Diameter (mm) 75.44
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference 110MP025-SFB4, 110MP025-SFB4
Set Screw Quantity 1
Insert Material Brass
